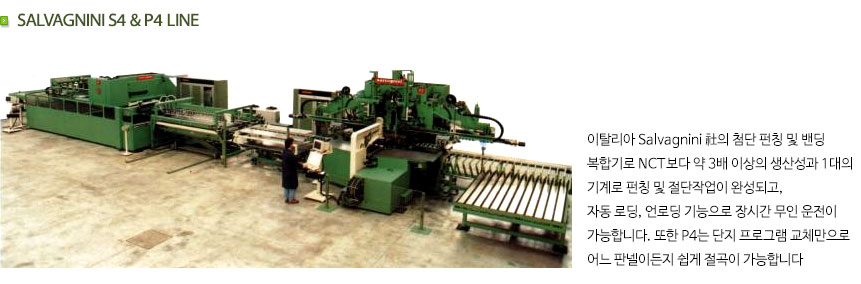

NC Control Salvagnini MICROMach+
Maximum loading sheet dimensions 3,048 mm x 1,803 mm
Minimum loading sheet dimensions 370 mm x 300 mm
Minimum and maximum sheet thickness 0.02"-0.20" depending on the material used
Maximum sheet weight no limit
Punching accuracy 0.1
Max. length of incoming sheet 2,000 mm
Max. diagonal that can be rotated 2,150 mm
Min. thickness M0.5 mm
Max. thickness 2.0 mm
